CDH-1575-E

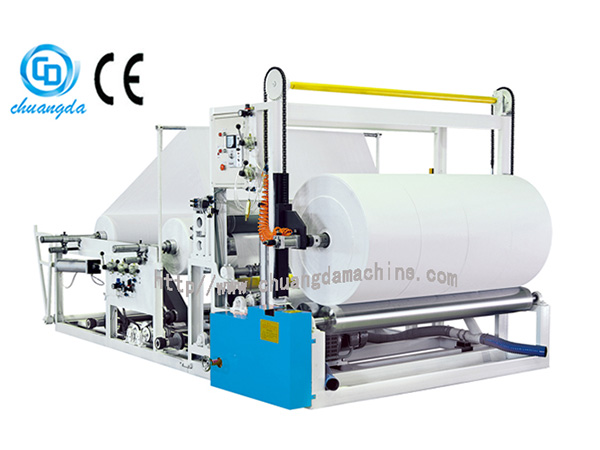

Fully Automatic Jumbo Roll Slitter Rewinder

Description
1. The CDH-1575-E fully automatic jumbo roll slitter rewinder is specialized designed for toilet paper slitting and rewinding. Hence, large paper rolls are cut into small ones, easy for handling.
2. This full auto jumbo roll slitting and rewinding machine can slit one-ply roll paper into 2-ply, 3-ply or even 4-ply roll paper, and the finished product fit for producing multi-fold towel paper, napkin, box-packed facial tissue and other paper products.
3. This is really a versatile, cost-effective paper product making machine which is adjustable to meet different production demands.
4. With excellent mechanical performance, compact structure and rational design, this fully automatic jumbo roll slitter rewinder is ideal for paper making factories, and has been highly praised by customers.
5. Pneumatic system is adopted, allowing for tight rewinding as well as high-speed and stable operation.

Technical Parameters
Power 4.5-11KW
Max. width of raw paper 1750mm
Max. diameter of raw paper roll 1100mm
Max. diameter of finished roll 1100mm
Production speed 260-300m/min.
Machine size 6200×2600×1800mm/6200×4000×1800mm (L×W×H)
Weight 2000kg

Work Flow
Single-ply jumbo rolls → flattening → slitting → rewinding → multi-ply paper rolls

Finished Product
