CDH-80

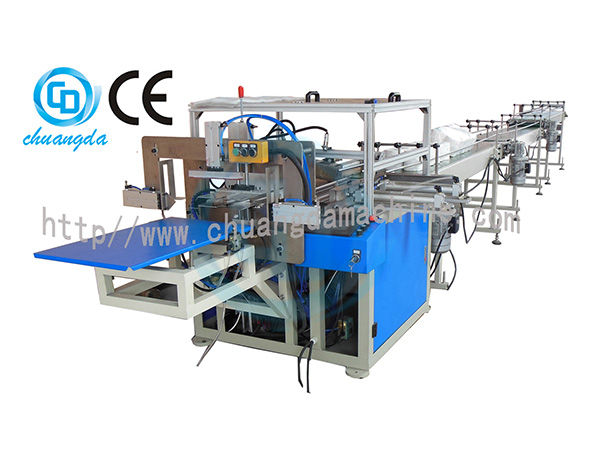

Toilet Roll Packing Machine

Overall Description
The CDH-80 toilet roll packing machine with conveyor belt is used to pack toilet paper with diameter of less than or equal to 100-180mm. It is able to pack 8, 10 or 12 paper rolls in one bag at one time. This toilet roll packer also enables bag sealing, user and operation friendly.

Remarkable Feature
Our toilet roll packing machine makes use of pneumatic control, and comes with conveyor belt which can automatically convey products to toilet roll wrapping machine. Stable and simple operation makes you feel at ease for toilet paper production. Besides, exquisite packing appearance will make you more than surprised.

Main Technical Parameters
Electrical source 220V, 50Hz
Main circuit power 0.74KW
Conveying and sealing power 0.45KW
Total power 1.19KW
Air pressure 0.4-0.5MPa
Overall dimension 6500*1200*1200mm (L*W*H)

Operation Process
The toilet paper roll wrapper suits for packing multiple paper rolls. It automatically conveys paper rolls to machine end via 2 conveying belts. After plastic bags are manually fixed to the machine end, paper rolls will be put into the plastic bags and our machine will then perform sealing.

Picture of Finished Product
