Feature

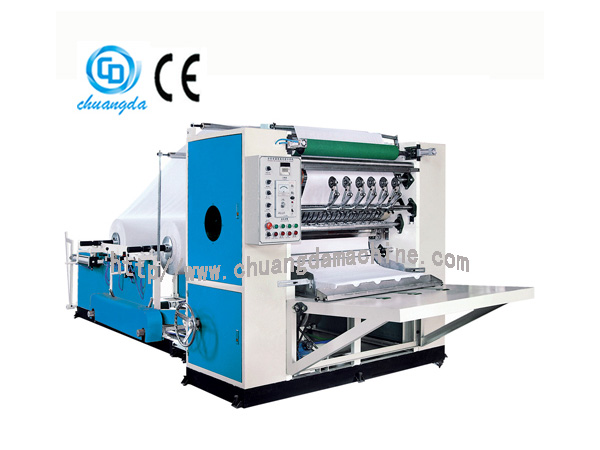

1. The CDH-200-6L facial tissue machine makes use of helix cutter to process tissues into different widths, thus perfectly meeting different requirements of consumers.

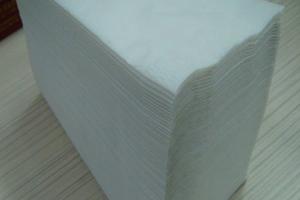

2. This drawing type tissue making machine is designed to count the number of paper automatically, and finished tissues are discharged from all lanes simultaneously. So, it is very convenient to pack finished tissues.
3. When unwinding paper reels, the unwinding speed is adjusted in a stepless way, making this facial tissue cutting equipment applicable for paper with a wide range of tensions. Moreover, the folding process is conducted with the help of vacuum absorption.
4. Our facial tissue machine is outfitted with a PLC system to achieve easy operation, and the variable frequency drive saves a lot of energy. The horizontal unwinder and pneumatic paper loader help operators out from heavy work.

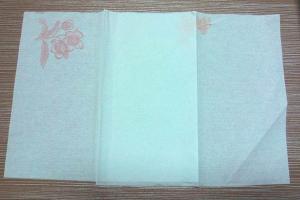

5. The embossing system is designed to make beautiful embossed patterns on tissues, and the pattern style is determined by customer.
6. The electrical components conform to our factory standard, and most of them are made in China.
Owing to the abovementioned properties, our facial tissue machine is especially suitable for new comers in this industry.
Technical DataPower supply | 380V/50Hz/3Ph |
Motor power | About 20kW |
Vacuum pump power | 22kW |
Unfolded tissue size (L×W) | 190×(180-220)mm |
Production speed | 80-90m/min |
Paper reel diameter | Max. 1200mm |
Paper reel width | 1140-1320mm |
Paper reel core diameter | 76mm |
Sheet counter | Shifting fork |
Cutter quantity | 6 pieces/set |
Air pressure | 10kg/m2 |
Embossing unit | Edge embossing roller (steel to steel) |
Machine size (L×W×H) | 8010×2300×2600mm |
Machine weight | About 9000kg |
Working Flow
Pneumatic paper feeding – unrolling – embossing – printing - cutting – folding – discharging
