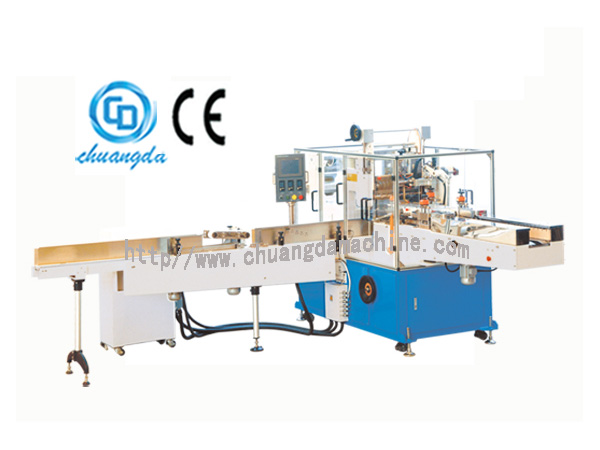

CDH-300

Automatic Facial Tissue Packing Machine

Our CDH-300 automatic facial tissue packing machine is mainly utilized to pack rectangular or square paper, including soft tissues, pocket tissues and napkins, into matching boxes.

Feature
1. The plastic film drawing facial tissue machine packs tissues via wrapping, folding and sealing steps, and the finished tissue box is compact and aesthetic.
2. For this tissue packing machine, stepless speed control technology is utilized to regulate production speed, while the PLC and touch screen realize simple operation and maintenance.
3. The conveyor belt moves at a constant speed, and it connects different machines together to form an automatic facial tissue production line, thus greatly cutting down labor cost.
4. As a result of photoelectric detection and servo tracking, our tissue packaging machinery would stop feeding films automatically if there is no tissue to be packed. In this way, a lot of packing materials are saved.
5. This facial tissue packing machine is a specialized machine, and it is characterized by high production efficiency, low failure rate, high degree of automation, and wide packing range.

Technical Data
Power supply 380V, 50Hz
Heat sealing power 3.6kW
Motor power 5.4kW
Air pressure 0.5-0.8MPa
Noise level ≤78dB
Box size (100-230) × (100-150) × (40-100) mm
Designed speed 25-60 boxes/min
Packing speed 25-45 boxes/min
Film material CPP, double sealing film
Machine size (L×W×H) 3560×5885×1925mm
Machine weight 3500kg

Working Flow
Tissue feeding – flattening – wrapping – back sealing – horizontal sealing on front and back sides – finished tissue box

Finished Tissue Box
