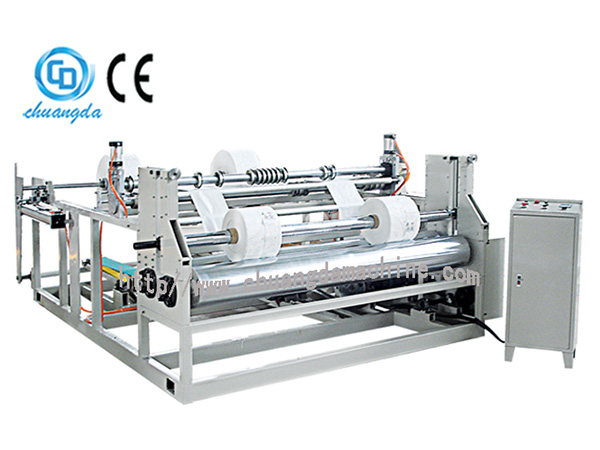

CD-1575D

Non Woven Slitter Rewinder

Description
The CD-1575D non woven slitter rewinder is specially designed for slitting and rewinding the non woven into the designed width. The width of the finished product can be flexibly adjusted according to actual demand. The non-woven fabrics splitting machine is provided with pneumatic feeding system and tension control system. Meanwhile, the independent electric control cabinet conduces to convenient manual operation. The CD-1575D non woven slitter rewinder has nice appearance.

Technical Parameters (Suitable for slit and rewind non woven with different size)
Power Supply 380V 50Hz
Power 2.2kW
Production Speed 100-120m/min
Max. Cutting Quantity 100mm (L)×15pcs
Applicable Material Spunlace non-woven fabric, wet strength paper, non-woven fabric
Gram Weight of Material 20-75g/m2
Size of Raw Material Ф1000×1500mm (Dia.×W)
Machine Weight 1000kg
Overall Dimensions 2700×2000×1300 mm (L×W×H)
Pneumatic material feeding system, paper web tension control device, pneumatic shaft winding system

Process Flow of Non-Woven Fabrics Rewinder
Pneumatically material feeding---Unrolling the raw material---Slitting raw material---Rewinding raw material

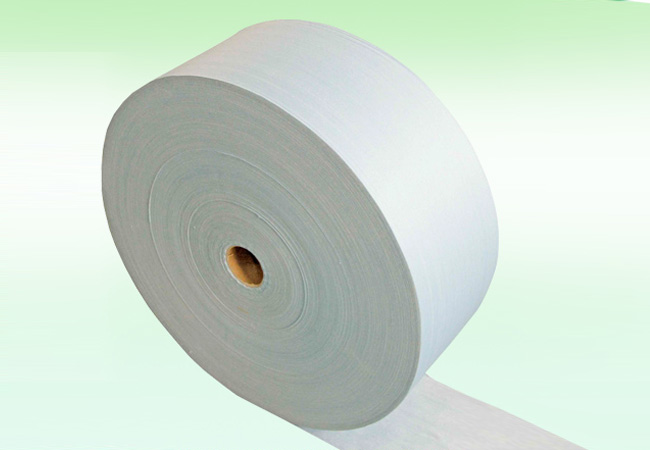

Finished Product
