CD-350

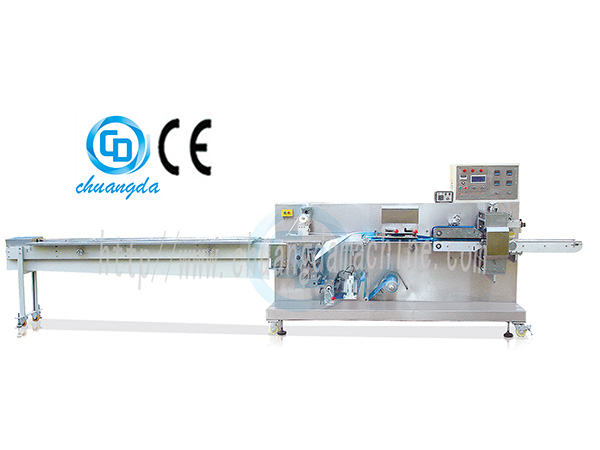

1~5 Pcs Baby Diaper Packing Machine

The CD-350 1~5 Pcs Baby Diaper Packing Machine is provided with PLC control system. Within the designed range, the width and length of the packaging bag can be adjusted. This stainless steel packaging machine is suitable for packing 1-5 pieces of baby diaper. The simple operation makes this paper product processing machine quite popular.

Main Technical Parameters of Baby Diaper Processing Equipment
Power Supply Three phase AC 380V, 50/60Hz
Power 5kW
Production Speed 30-50pcs/min
Product Size (180-300)×(90-140)×(10-80) mm (L×W×H)
Control System PLC control system, touching screen
Applicable Material OPP/PE, PET/PE
Size of PE Film Ф350×400mm (Dia.×W)
Machine Weight 1400kg
Overall Dimensions 5280×1000×2100 mm (L×W×H)
Optional Device Colorful touching screen
Roller manufacture date printing device, adjustable bag-making device and electric eye automatically tracking device.

Process Flow
Conveying the baby diaper to the baby diaper packing machine---Sealing in the middle of the packaging---Horizontal sealing and cutting the product---output of finished product.

Finished Product
