CD-1800

30~120pcs Automatic Wet Wipe Machine

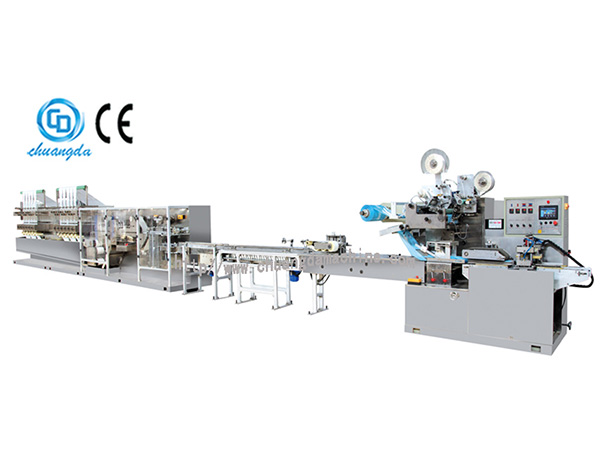

CD-1800 30~120pcs automatic wet wipe machine is a robust packaging equipment with the capability of performing all the processes from raw material processing to finished wet wipe products.

This nonwoven wet wipe manufacture equipment has been industry-proven solution for raw paper roll slitting, folding, wetting, cutting, counting and stacking. The entire production line can be done in a fast and clean manner.

Advantage
1. This wet wipe wrapper is applied to produce 30 to 120pcs per pack wet wipes.
2. Thanks to automatic counting system and adjustable stacking unit, customers are allowed to choose package content accordingly.
3. Our automatic wet wipe machine is fitted with automatic cycling system for wetting, so as to minimize water consumption. Moreover, dual-mixer is available to provide sufficient water supply and reduce water refills.
4. PLC and colorful touch-screen make setting and operation easy and pleasant.
5. "Z" folding method permits no connected pieces.
6. Bag forming device is adjustable to meet various piece requirements. There are also corner inserting device, automatic tracking system, roller-type date printing device, punching unit and label sticking unit, so as to make this packaging equipment a wise investment. Moreover, optional label protection tape device is also available.

Technical specification of folding unit
Power supply 380V 50HZ
Power 12kW
Production rate 2200 to 2800pcs/min
Folding method “Z” folding with no connected pieces
Product size (unfolded) (150 to 200) × (150 to 250)mm (L × W)
Product size (folded) (150 to 200) × (90 to 110)mm (L × W)
Applicable material Spunlace nonwoven, hot melt nonwoven
Material gram weight 40 to 80g/m2
Feeding size (1000 to 1500) × 1000mm (W × D)
Wetting system and mixer 400L × 2
Counting method Automatic counting, piece setting on touch-screen
Machine dimension 8200 × 3500 × 2000mm (L × W × H)
Water tank size 2000 × 1100 × 1900mm (L × W × H)
Machine weight 7000kg
Automatic cycling system for wetting
Technical specification of CD-1800 30~120pcs automatic wet wipe machine
Power supply 380V 50HZ
Total power 8kW
Production rate 30 to 50 packs per min
Product size (unfolded) (180 to 300) × (90 to 120) × (30 to 80)mm (L × W × H)
Controlling system PLC, colorful touch-screen
Applicable material OPP/PE, PET/PE
Machine weight 2000kg
Machine dimension 5280 × 1000 × 2100mm (L × W × H)

Workflow
Slitting raw material → N folding → wetting → cutting → stacking → transporting to packaging unit → wrapping → middle sealing → ends sealing and cutting → finished product output

Finished product
