Automatic Toilet Paper Machine

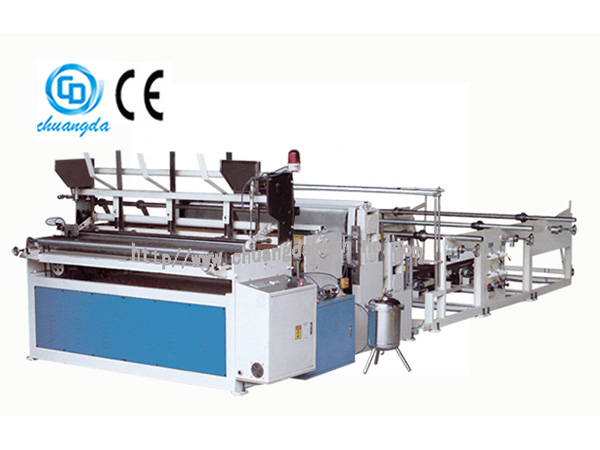

The CDH-1575-YE automatic toilet paper machine is configured with two essential parts, i.e. slitter and rewinder.


A. Description
The toiler paper rewinder adopts advanced PLC, frequency converter, electric brake and touchable multi-screen human-machine interface. It is also configured with coreless rewinding system, making production more efficient.

B. Main Features
1. This automatic toilet paper machine enables automatic paper tube loading and replacement. After discharging finished products, it will immediately reset and rewind again. Paper tube size is adjustable within 1 minute.
2. Automatic edge trimming, glue spraying and sealing can be completed at one time. Finished paper roll comes with 10-18mm paper end for usage convenience. In the meantime, this rewinding machine can greatly reduce paper wastage, thus saving production cost.
3. Parameters and fault can be displayed on touchable screen.
4. Our automatic toilet paper machine makes use of 3 cutters for perforation, and adjusting range of gear box is very large.
5. Three-ply horizontal unwinding stand, pneumatic paper loading mechanism and wide pneumatic feed belt are adopted. Besides, there is independent tension adjusting device for each paper roll.
6. Due to point-to-point double-sided embossing system, finished paper roll comes with excellent embossing effect, soft texture and artistic pattern.

C. Technical Parameters
Electrical source Three phase, 380V, 50Hz
Total power 9KW
Production speed 180-200m/min.
Finished roll diameter Φ60-150mm (adjustable)
Finished roll core diameter Φ32-50mm
Raw paper diameter ≤Φ1100mm (Other sizes are available.)
Raw paper core diameter 3″ (76.2mm) (Other sizes are available.)
Perforating pitch 90-160mm (Pneumatically separating unit is optional.)
Perforating dot pitch 10-15mm
Processing capacity 0-160m/min.
Parameter setting Touch button, LCD screen, operation panel
Programmable controller Delta PLC (Other brands are optional.)
Drive system Stepless gear box, insuring length precision of finished product
Embossing roller Two sets, steel to rubber
Unwinding stand 1-3 plies
Pneumatic system 3 HP air compressor, mini pressure, 5kg/cm2 (provided by client)
Power Variable frequency speed control, 9KW
Machine size 6200×4200×1800mm (L×W×H)
Weight 6800kg

D. Work Flow
Work flow of this automatic toilet paper machine is as follows:
Raw paper → pressing and polishing → perforating → flattening → rewinding → gluing and sealing → discharging


A. Features

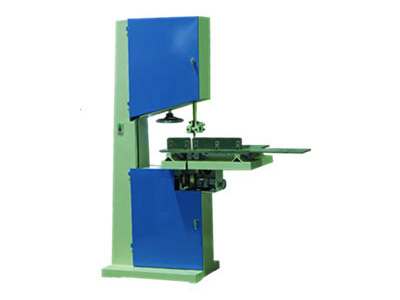

1. The toilet paper slitting machine can be coupled with perforating machine and facial tissue converting machine.
2. It cuts raw paper into paper rolls with required length and width.
3. Automatic cutter grinding device and mobile working platform are configured.
4. Our automatic toilet paper machine boasts stable performance and high production efficiency.
5. Linear bearing makes guide rail sliding more smooth, and thereby cutting is effort saving.
6. Protective device is equipped to ensure safe production.

B. Technical Parameters
Product size ≤200mm
Products diameter ≤180mm
Processing capacity 1800kg
Required power 1.5KW
Machine size 1800×500×1900mm
Weight 500kg

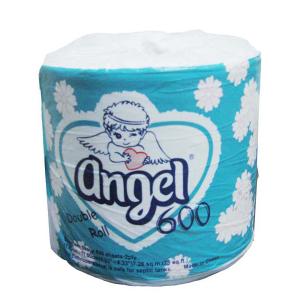

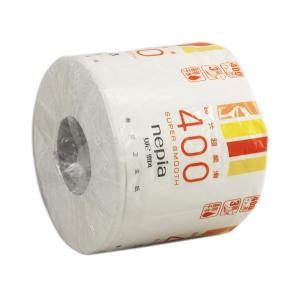

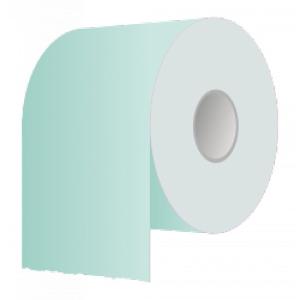

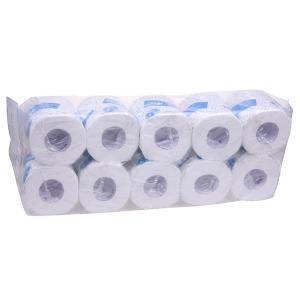

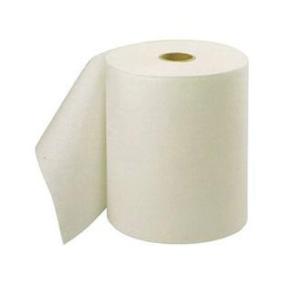

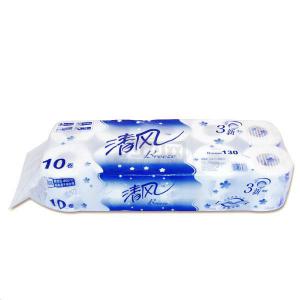

Finished Product
