Facial Tissue Machine

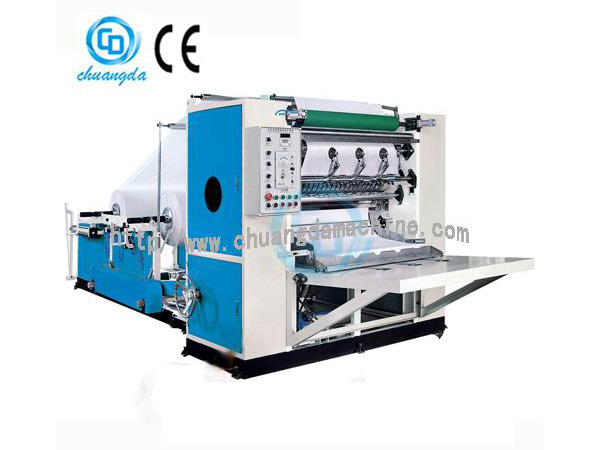

The CDH-180-4L facial tissue machine is a 4-lane drawing type tissue cutting machine, and it uses helix cutter to cut paper tissues into different widths to satisfy every specific application.

Our facial tissue making machine automatically counts the number of tissue, and it carries out folding operation by vacuum absorption. On the other hand, the electrical controlled pneumatic system allows easy operation, and the stepless speed regulation mechanism makes this tissue converting machine applicable for raw paper with high or low tension.

Optional Function
For this facial tissue machine, some auxiliary devices can be equipped on request.
1. An embossing system could be incorporated to form an embossed tissue cutting machine, and the embossed pattern is clear and beautiful.
2. A two color printing system could be outfitted to form a two color tissue cutting machine, and the pattern is bright and vivid.

Technical Data
Production speed 60-100m/min × 4 lane
Unfolded tissue size (L×W) 180×(130-210) mm
Folded tissue size (L×W) 90×(130-210) mm
Motor power 4kW
Vacuum pump power 11kW (380V, 50Hz)
Machine weight 3500kg
Machine size (L×W×H) 5100×1800×2100mm

Working Flow
Pneumatic paper feeding – unrolling – embossing – cutting – folding – discharging

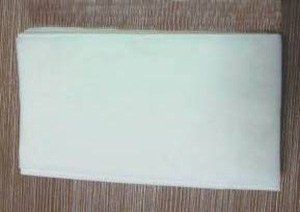

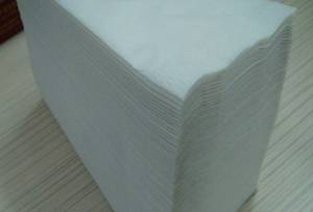

Finished Facial Tissue
