CD-90

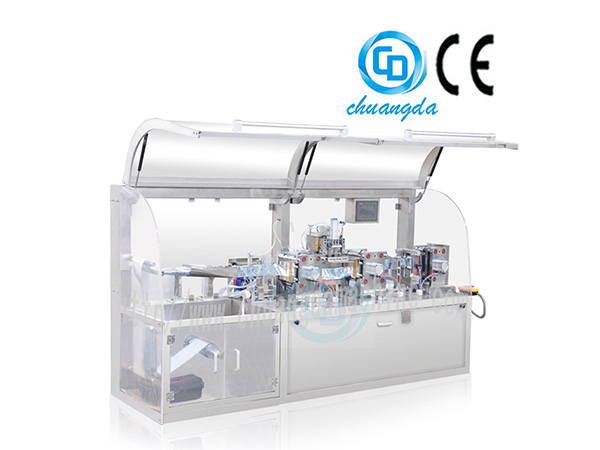

Automatic Horizontal Four Side Seal Wet Wipe Machine

Main Features
1. This CD-90 automatic horizontal four side seal wet wipe machine is controlled by photoelectric pneumatic device. It is also configured with fault alarm and safety indicator to ensure the operation with high safety.
2. Our wipes making machinery supports automatic setting of single or double packages, and easy adjustment of packaging film in single or double colors.
3. Due to the digital controller, this tissue packing machine allows free setting of parameters and easy adjustment so that it saves the time for production.
4. There are various kinds of liquids for packing the moistened tissue in separated and mixed manners. Under the control of imported metering pump, the liquid is added in certain volume precisely or as customer required.
5. Our horizontal four side seal wet wipe machine offers totally enclosed production, realizing low pollution, low noise, high productivity and low rejection rate. Moreover, this paper processing machine is attracting, durable and easy for cleaning.
6. Designed in double layered structure, the stand-alone equipment is space saving, efficient and operation-friendly. Thus the horizontal four side seal wet wipe machine is suitable for large scale production of wet wipes.

Main Technical Parameter
Power source 220V, 50Hz, single phase
Power 2.25kw
Production speed 40-120packs/min.
Product unfold size 40×(30-220)×220mm (L×W×H)
Packing size (40-130)×(40-80)mm (L×W) (According to the packing requirements)
Suitable material Airlaid paper, nonwoven paper, nonwoven spunlace paper
GSM of raw material 20-80g/m2
Folding way Longitudinal 8 folds, horizontal 4 folds at maximum (optional)
Inner core diameter of raw material 70-75mm
Liquid range 0-200cc
Machine weight 1000kg
Machine size 2800×2800×1800mm (L×W×H)

Working Flow
Tissue unrolling → lateral folding→ cutting in size→ longitudinal folding→ feeding into the bag→ moistening → sealing→ printing production date→ positioning and cutting→ discharging finished product

Finished Products
