Facial Tissue Machine

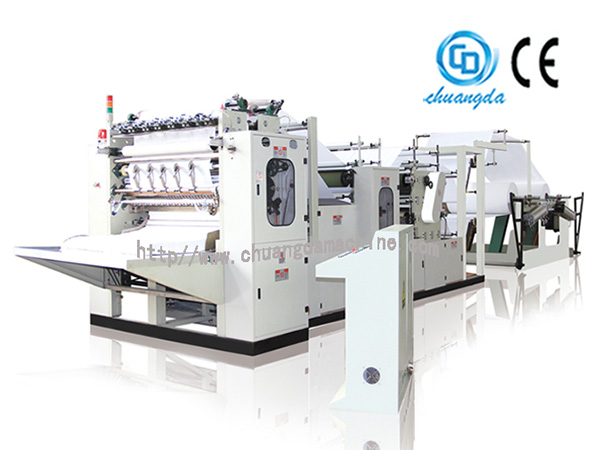

The CDH-200-6N facial tissue machine is a PLC-controlled tissue converting machine, and its electrical components are mainly provided by internationally famous suppliers to guarantee smooth working and long service life.

1. Our 6-lane tissue making machine is able to make tissues with different widths, and this is realized with the help of helix cutter.
2. The facial tissues are folded as a result of vacuum absorption, and pneumatic paper feeding mechanism greatly alleviates the workload of operators.
3. Owing to the implementation of independent servo control and tension control, our single color tissue machine runs smoothly all the time, and it will stop automatically when there is no paper to remind operators to change paper reels.
4. The facial tissue machine counts the number of paper automatically, and it outputs paper tissues at all lanes at the same time. Moreover, the embossing unit creates clear patterns on tissues to deliver an aesthetic feeling, and the pattern is customizable.

Technical Data of Facial Tissue Machine
Power supply 380V/50Hz/3Ph
Total power 22kW
Lane No. 6
Unfolded tissue size (L×W) 105×196mm
Production speed 80-100m/min
Ply No. of paper reel 2 plies
Paper reel diameter 1800mm
Printing Color Single color
Paper reel width 1176mm
Unwinder No. 2
Fold roller 1240mm
Embossing unit Full embossing
Cutter quantity 7 pieces
Perfume unit Spray type (optional)
Machine size (L×W×H) 10300×2300×2600mm
Machine weight About 9800kg

Working Flow
Pneumatic paper feeding – unrolling – embossing – printing - cutting – folding – discharging

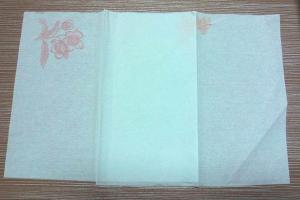

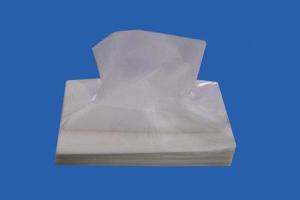

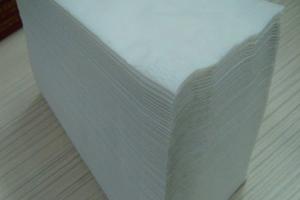

Finished Facial Tissue
