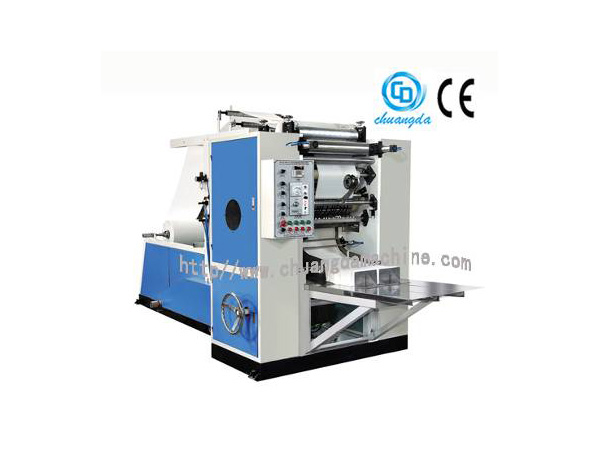

The CDH-200-2 facial tissue machine is a 2-lane box-drawing type tissue machine. It counts the number of paper automatically, and then outputs facial tissues on two lanes at the same time to facilitate following packaging process.
With the help of helix cutter, paper is cut into different widths as requested, and vacuum absorption is utilized for folding operation. As for unwinding paper reels, stepless speed regulation technique is adopted, making our facial tissue making machine fit for paper with either high or low tension. In addition, this facial tissue machine is easy to operate due to the pneumatic system.
1. The embossing system, if installed on request, will create clear patterns.
2. The two color printing system, if installed on request, will offer colorful images.
|Vacuum pump power||5.5kW (380V, 50Hz)|
|Production speed||60-100m/min × 2 lane|
|Unfolded tissue size (L×W)||200×(130-210)mm|
|Folded tissue size (L×W)||100×(130-210)mm|
|Paper reel size||420mm (other dimensions can be customized)|
|Machine size ( L×W×H)||4100×1800×2100mm|
Pneumatic paper feeding – unrolling – embossing – cutting – folding – discharging
