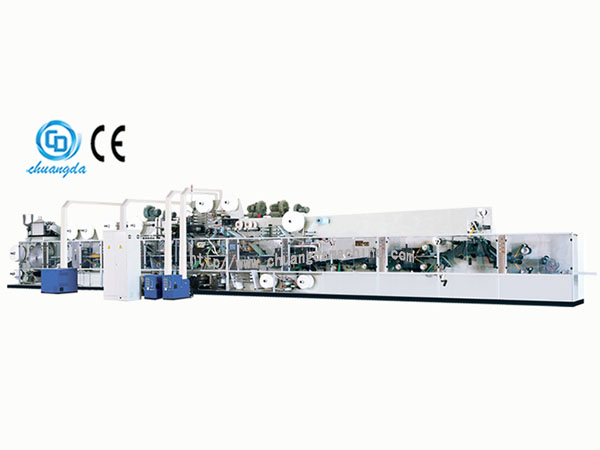

Automatic Baby Diaper Machine

By changing the cutting tool and gear box, the CDH-3N automatic baby diaper machine is capable of producing baby diapers of four different sizes, thus meeting different customer demands. Controlled by PLC, this diaper machine is easy to operate and provides stable performance. Automatic material splicing is achievable without stopping the machine.

1. A high-speed crusher is used by this paper converting equipment to crush the treated and untreated pulp.
2. There is a protective door.
3. Our baby diaper machine automatically detects and rejects defectives.
4. It automatically stops when the material runs out.
5. The human machine interface uses a touch screen.
6. Most electrical components are imported from abroad.
7. The finished baby diaper comes with an elastic waistline.
8. Embossing can be performed as per customer requirements.
9. A single pulp feeding system is used.
10. The thickness of surface plate is 30mm.

Main Technical Parameters
Power supply 380V, 50Hz
Installed power 90kW
Designed production speed 350 pcs/min
Stable production speed 250-280 pcs/min
Baby diaper size a). XL (510-520)×330mm
b). L (470-480)×320mm
c). M (430-440)×320mm
d). S (380-390)×280mm(customized)
Defective rate ≤2% (excluding defectives caused by glue applicator's failure)
Machine size 26000×1800×2800 mm (L×W×H)
Weight 30000kg

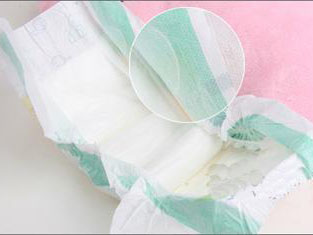

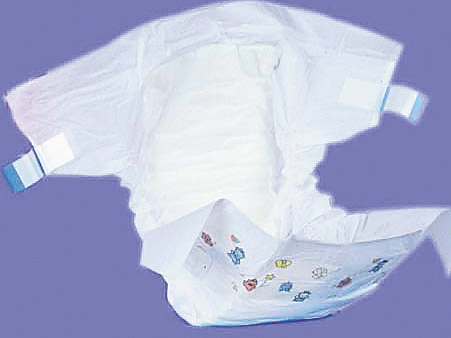

Finished baby diaper
