CD-160

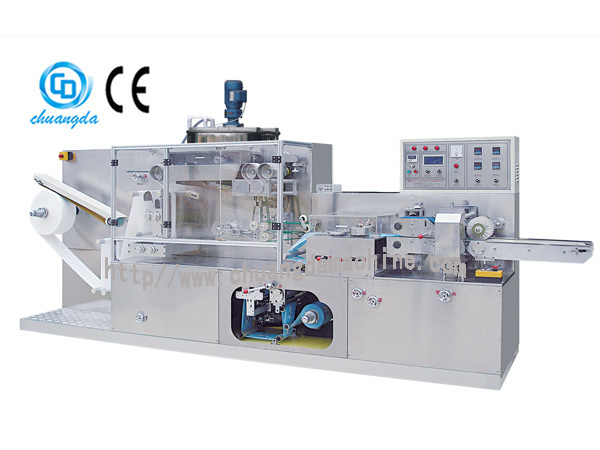

Automatic Single Piece Wet Wipe Machine

Detailed Product Description
This CD-160 automatic single piece wet wipe machine is used to make an entire roll of raw paper unrolled, folded longitudinally, added with liquid, cut in fixed length and horizontally folded in half. Then it gets the wet wipe packed with film, sealed, positioned and cut finally. All the process is finished by the single piece wet wipe machine automatically without contacting with people, ensuring the hygienic and clean production at high speed.

Main Features
1. Operators can adjust the length of the wet wipe directly on the wet tissue machine without changing any spare part. The operation is simple and convenient.
2. It is also easy to set the length, picture position of the packaging bag through the touch screen without stopping the wipes packaging machine. Thus users don’t need to worry about the delay of production.
3. This automatic paper converting machine selects the electric differential device to modulate the position of wet pipe and packaging bag smoothly. In this process, it is needless to stop the machine so that the production schedule will be not disorganized.
4. In the classic style, this automatic single piece wet wipe machine is made of mature technology, and it runs stably with high cost performance.

Main Technical Parameter
Electrical source Three phase 380V, 50Hz
Total power 6kw
Production speed 80-150 packs/min.
Product size (unfolded) (120-260)×(150-200)mm (L×W)
Product size (folded) (60-130)×(50-80)mm (L×W)
Control system PLC control system, touch screen
Suitable materials Spunlace nonwoven fabric
Gross weight of raw material 40-80g/m2
Size of raw material (150-200)×Ф1000mm (W×D)
Weight of machine 1500kg
Machine size 4500×1000×1600mm (L×W×H)

Working Flow

1. Making process
Unrolling the entire coil of raw material→ longitudinal folding in N shape → humidifying the wipes → adjusting the humidity of wipes→ cutting → folding wipes in V shape→ conveying the wet wipes to the packing system.

2. Packing process
Unrolling packing film→ printing date on the film→ feeding the wet wipes into the formed bag →sealing the bag in the middle place → finishing the horizontal seals of the bag at both sides→ discharging finished products

Finished Products
